3D print your own personal picture – a unique gift

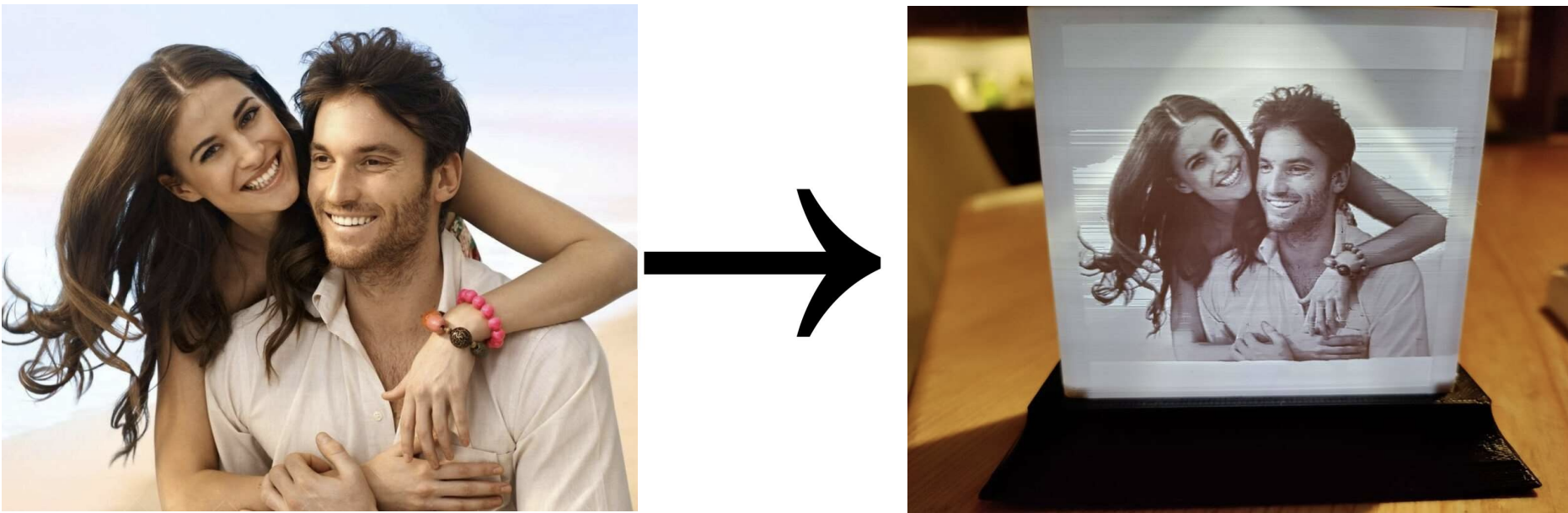

Are you looking for a unique and personalized gift or a stunning way to display your holiday photos? Look no further! This step-by-step guide will show you how to turn your personal pictures into a lithophane lamp that displays your image in mind blowing quality when turned on. Plus, you can even change the background color to your favorite shade using your phone. Build yours now!

Overview

The planned RGB tabletop lamp has an ESP-32 chip which illuminates the background of your own picture on the front with the help of three WS2812b LEDS. The whole lamp will then be controllable over your home WiFi and a software called WLED. The whole thing can be 3D printed with conventional 3D printers such as an Ender3, Prusa i3 MK3, etc.

The resulting lamp can look like this:

[3d_viewer id=”572″]

Parts list

  • ESP-32 (Amazon)
  • WS2812b LEDS (Amazon)
  • a few centimeters of cables (Amazon)
  • 4 x M3 screws 12 -14mm
  • 3D printed parts
    • base
    • lid
    • lamp with own lithophane (made by the generator)

Tools

  • soldering iron (solder)
  • hot glue gun
  • glue
  • 3D printer
  • side cutters
  • alen key M3
  • tape

Building it

1. Custom image to lithophane

A lithophane is a picture which gets revealed by light shining from behind on it. This is achieved by 3D printing the darker parts in the image thicker so that more light gets blocked and the brighter parts thinner. This works better when using images with good contrast.

1.1. choose an image

You can upload pretty much any image you like but espesially considering the small size of the usable image area i would recommend a simple image with good contrast. In my case I used a picture outdoors with good contrast.

1.2 lithophane creation

To create the lithophane lamp I have created a website to which you just need to upload your picture and it will create your personal lithophane as a .stl file that you can simply slice with your 3d printer software and you are good to go. Its super easy and quick.

After this you just need to additionally download the base and the top lid.

3. Slicer

As the lithophane needs to be full of plastic for the brigth/dark effect to work you need some specific slicer settings activated. As a slicer i use PrusaSlicer and can recommend it for everyone having a 3D printer from Prusa. That being said all slicers have the following settings included.

3.1. Lithophane and lid

First of lets import the newly generated lithophane lampshade.

The most important control in this context is the perimeter setting as this defines how many “hulls” the 3D printer should print bevor starting with the infill. Depending on the thickness of the lithophane it isn’t even needed to go above 2, but you can safely bump this up to 8 without any side effects.

Next you want to set the infill to 100%. Because we already set the perimeters to 8 this will not affect the lithophane itself (as it has no infill) but the the places for the screws in the object are (depending on the nozzle your using) bigger than 8 perimeters.

3.2. Base

The base.stl file of the lamp doesnt really need any special requirements when slicing. Just slice it with 2 perimeters and 20% infill of your choice and it will be fine.

4. 3D Printing

4.1. Lithophane and lid

As you might have guessed, the lithophane/lampshade and lid need to be printed out of white PLA filament so the colours from the LEDs inside will shine through. In my experience it is worth using good quality filament on the lithophane as you otherwise might get impuritys in the print.

4.2. Base

The material of the base is again less important than the one of the lithophane and any color or type of filament will do the job. I can recommend a dark blue or silver PLA filament for a nice look even when turned off.

5. Assembly

Now for the final mechanical part: start of by glueing the lid with a little bit of two component glue or plastic glue on the lampshade and let it dry. While waiting you can start to cut of 3 leds of your WS2812b led strip.

Then carefully solder the pins of the first LED (marked by arrow) to the following ESP-32 pins with the help of a few short wires:

Data cable -> GPIO Pin 4

5V -> 5V

GND -> GND

Afterwards you can fixiate the LEDs on the ESP-32 with the help of a double sided clue pad. Please make sure that no electrical conductive parts short on the ESP-32 dev board.

With that done you can glue the ESP-32 with the LEDs on top in the base. Before applying the glue, double check if you can plug in the cable.

Now to complete the build, you can place the lampshade in the intended slot on top of the base. To secure it, there are four holes for screws on the under side of the base through which you need to screw M3 x 12mm bolts.

6. Installation of WLED

WLED is a free and open source programm for the ESP-X class of chips. Once installed you can completly controll and animate your LEDs over a Web interface and App (IOS and Android). There are also many plugins and addons available such as LEDfx with whichs help you can let your lamp react to music.

The installation is as easy as connecting your ESP-32 over a micro usb cable to your PC and opening the WLED installer website in your browser.

1. Use the default version and klick start
2. In the opening window choose the port your ESP-32 is connected to

3. After the installation has finished you will be asked to enter your WiFi credentials meaning the name (SSID) and the password. That being done you will be presented with the following window and you will be able to visit the web page of the device by choosing the first option.

Once you are on the WLED site you need to put in the GPIO pin to which the LEDs are connected which is pin 4 in our case. How to do that in detail can be found in the video guide of this project.

Congratulations! You managed to build your very own RGB lamp with a lithophane showing your personal image whose color can be controlled via WLED. You can now unpluck your lithophane from your computer and put it anywhere you like (as long as your home WiFi reaches) with the help of a normal phone charger (grid power to USB).
